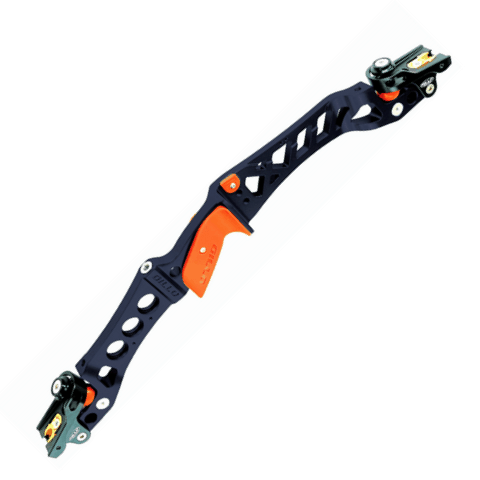

RISER GX2 25 ILF
Specifiche Tecniche / Technical Specifications
Recurve & Bare Bow riser
- ILFLimbs compatible
- Floating limbs pockets allow over 30% poundage adjustment range
- Limbs pockets compatible with GT limbs pockets
- Orange color Integrated Neoprene shock absorbers
- 25” length, RH and LH versions
- Body and Pockets forged and/or machined from solid Aluminum bar
- Matte sandblasted bright anodized surface or Cerakote finish
- Aluminum 7075 Limbs alignment plates
- Special round seats for optional balancing weights
- Stainless steel limbs bolts assembled in AL 7075 Black anodized bodies
- G03-YG-RH-M-OG Advanced 3D plastic slim grip
- 1 front center Stainless Steel stabilizer bushing,
- 2 Front stabilizers holes 5/16-24 tapped
- Compatible to all G1 ,GQ, GT and G5 Bare Bow weights, grips and accessories
- Approx. 1200 g mass weight
- Dual Color Anodized versions RH: Black (KBK), Blue (KBL), Purple (KPR), Green (KGR), Red (KRD), Turquoise (KTQ)
- Dual Color Cerakote versions RH: Azur (KAZ), Titanium (KTI), Yellow (KYL) Dual Color Anodized versions LH: Black (KBK), Blue (KBL), Purple (KPR)
- Packing includes long clicker plate, Manual with Warranty card, 4 Allen wrenches, 5 cliker and BB weights SS screw, 2 bolt locking Brass grub screws
Optional accessories available:
- G04-DK6-AL/SS 6 disk weights kit (Al Black, SS Gold)
- G01-DK6 6 Stainless Steel disk weights kit
- G05-DK2 2 steel disk heavy weights kit
- G03-DK2-TG 2 Tungsten disks Gold color
- G02-CKK Plastic cliker plates in different colors and length
- G01-BW-01 Bare Bow covers
- G03-BW-03 “The Hammers” Bare bow kit, AL or SS
- G04-BW-04 Bare Bow covers from 300 to 950 g
- Various Plugs to cover bottom weights holes, made by wood or plastic 3D printed in various colors
- Various grips made by wood or plastic 3D printed in various colors
